Carbon Fiber Sheet Hot Press Production Line
Integrated Carbon Fiber Prepreg Layup, Material Handling and Hot Press Forming Production Line

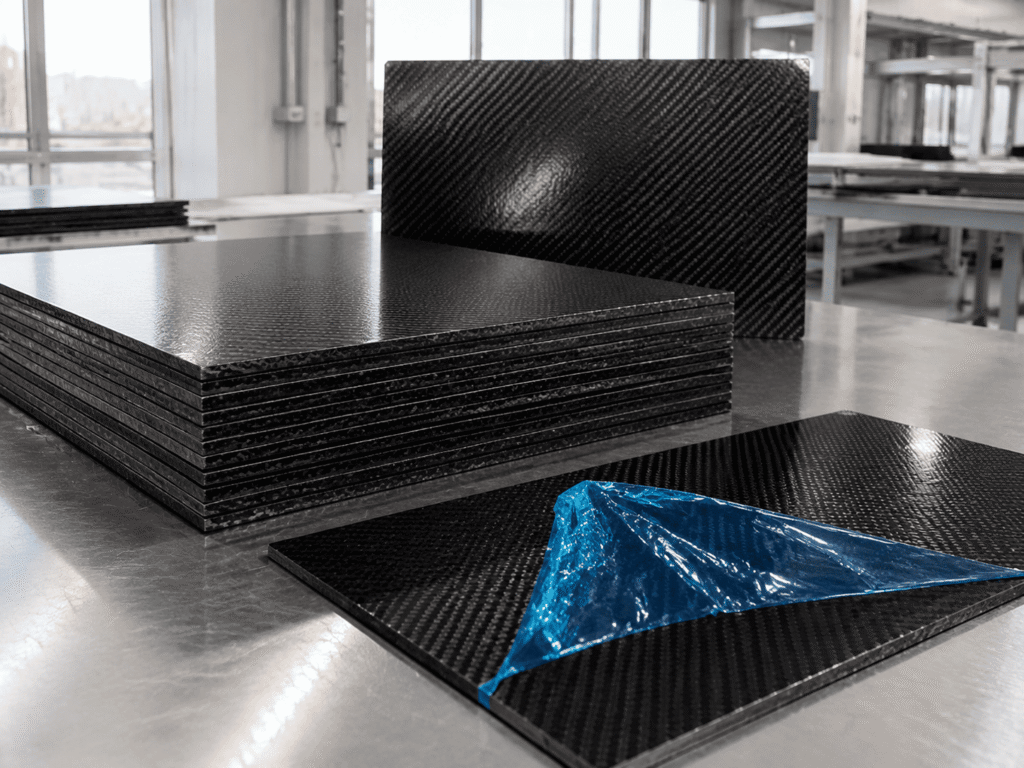

This carbon fiber sheet production line integrates prepreg layup, material handling, two-layer hot press forming, unloading, cooling, and product inspection. The system is designed for manufacturing flat carbon fiber sheets with controlled thickness, surface quality, and batch consistency.
The production line can be configured according to the customer’s prepreg material, sheet dimensions, production capacity, forming temperature, pressure requirements, and workshop layout.
Production Line Overview
Complete
Complete
Manufacturing Solution
Process Description
Carbon fiber prepreg is first cut and manually stacked according to the required ply orientation and sheet thickness. The completed layup is wrapped with release film or release paper and placed between stainless-steel or tempered-glass separator plates.

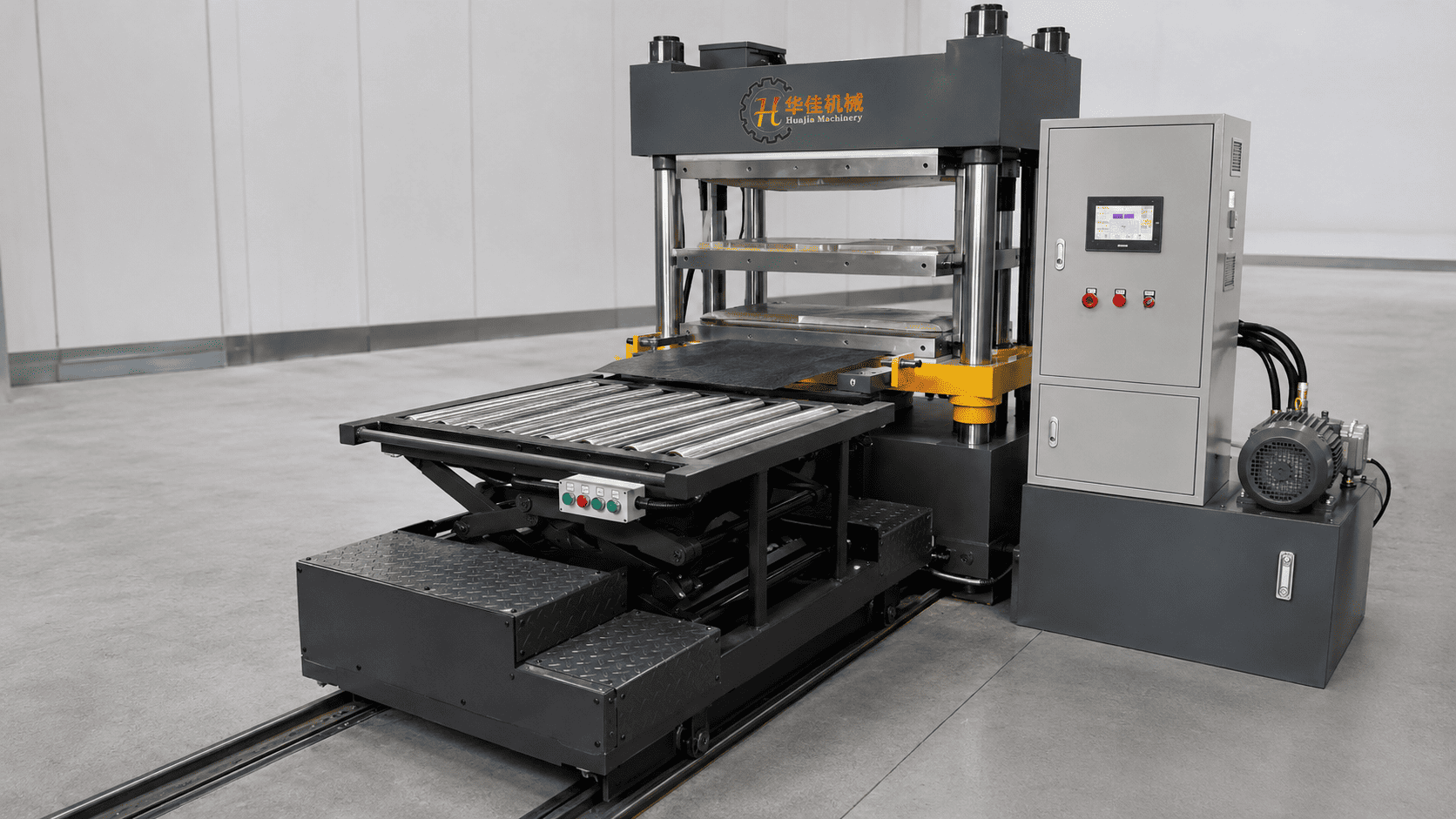

The material is loaded onto the hydraulic roller lift table. The lift table travels along the floor rails and adjusts its height to align with either working layer of the two-layer hot press. The operator manually pushes the material into the press through the non-powered rollers.
The hot press then applies the preset temperature, hydraulic pressure, and holding time to consolidate and cure the prepreg. After forming, the sheets are removed with the lift table, cooled naturally, and inspected for dimensions, thickness, flatness, and surface quality.
Key Benefits
Production Line
Production Line
Advantages
Two-Layer Simultaneous Forming
The two-layer hot press can process two groups of carbon fiber prepreg sheets during one production cycle, improving production efficiency.
Flexible Material Handling
The hydraulic roller lift table aligns with both working layers for loading and unloading carbon fiber sheets and separator plates.
Stable Pressure and Temperature
Controlled hydraulic pressure and uniform platen heating help improve sheet flatness, thickness consistency, and forming quality.
Adjustable Process Parameters
Forming temperature, pressure, and holding time can be adjusted according to prepreg type, sheet thickness, and product requirements.
Customized Line Configuration
Pressing force, platen dimensions, working-layer opening, lift-table height, voltage, and workshop layout can be customized.
Line Composition
Included
Included
Equipment

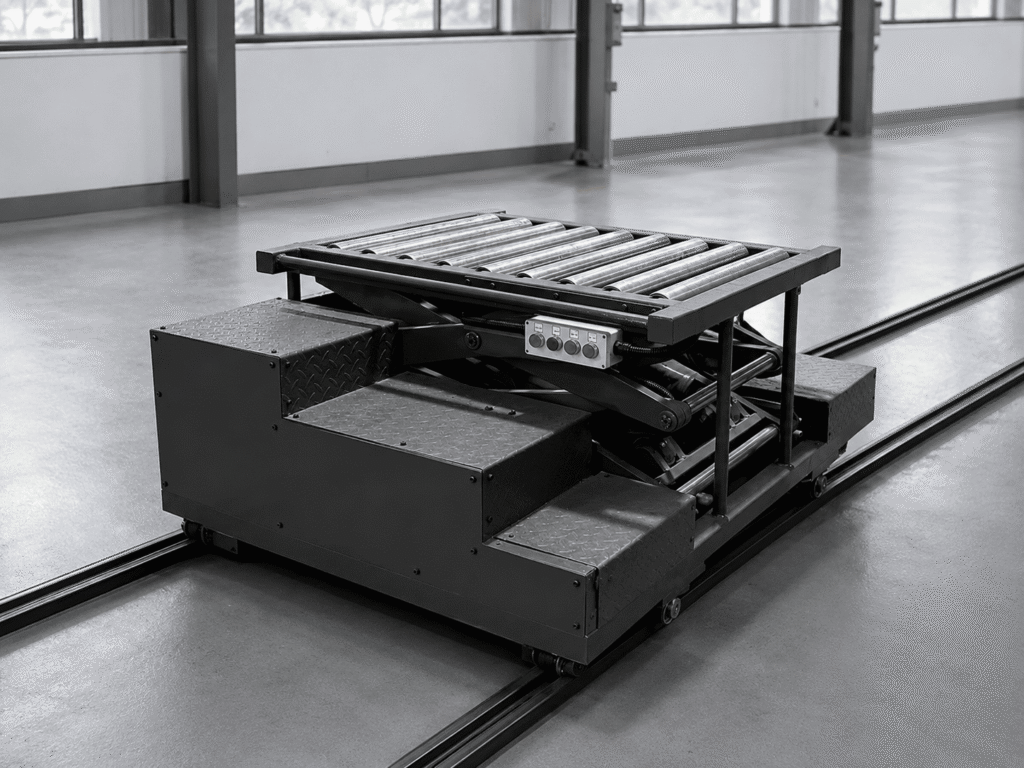

3-Ton Hydraulic Roller Lift Table for Carbon Fiber Sheet Handling
View Details
Production Workflow
Process
Process
Steps
01

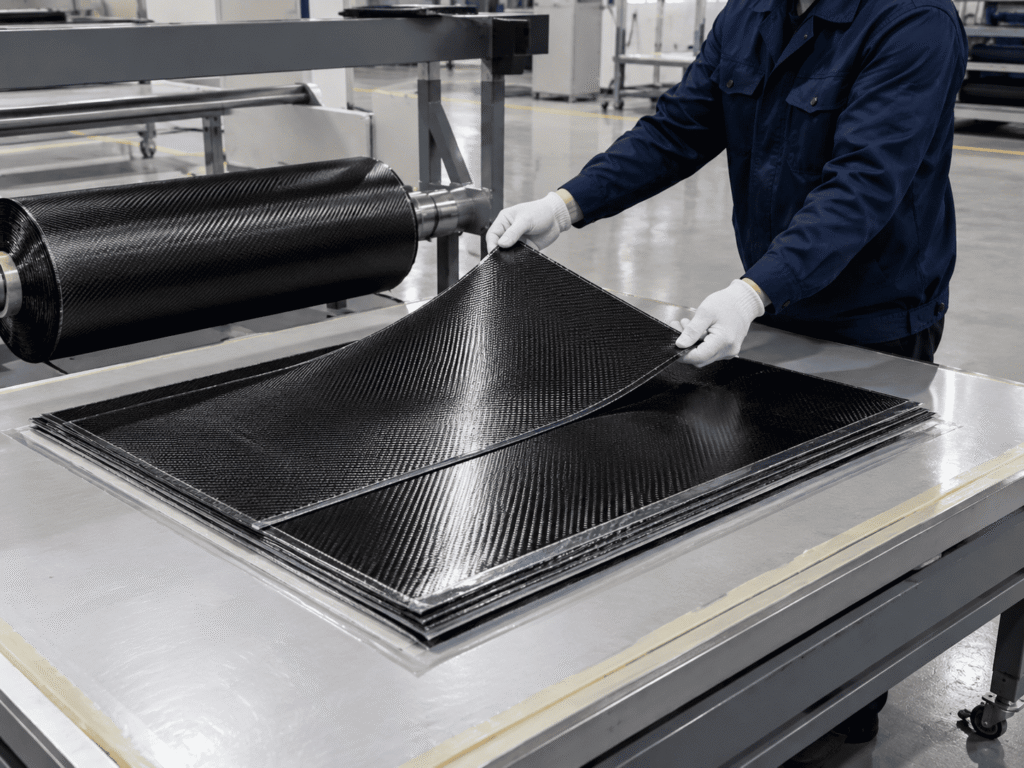

Prepreg Cutting and Layup

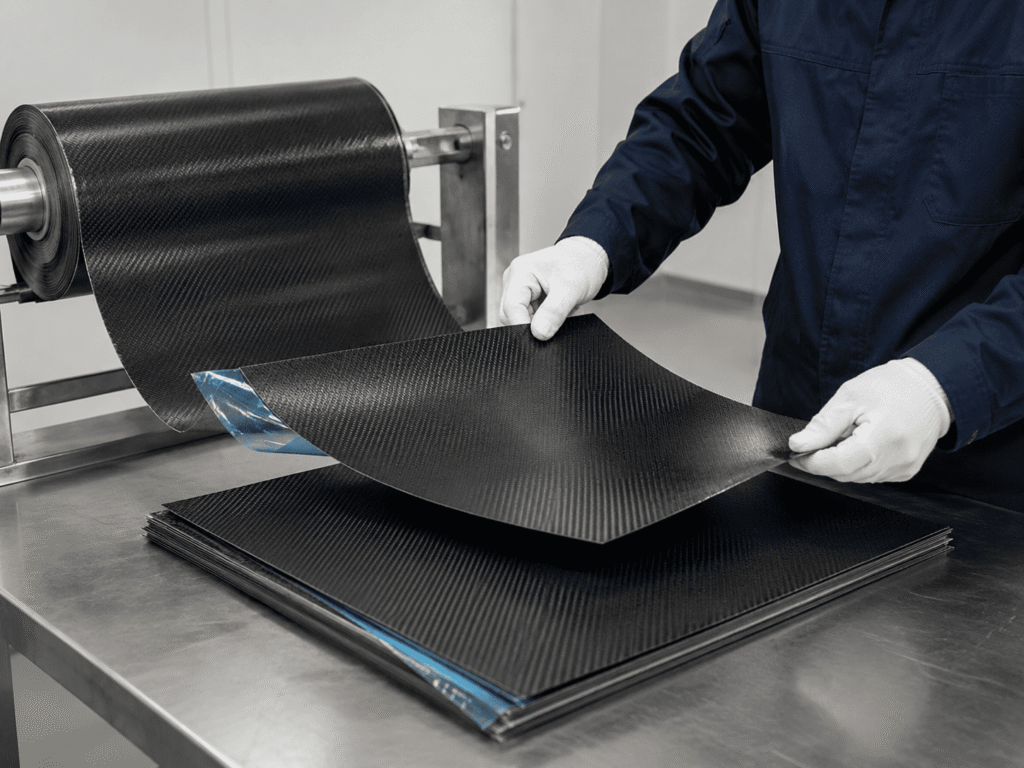

Carbon fiber prepreg is cut to the required dimensions and manually stacked according to the specified ply orientation, sheet thickness, and layup structure.
02
Separator Plate Preparation

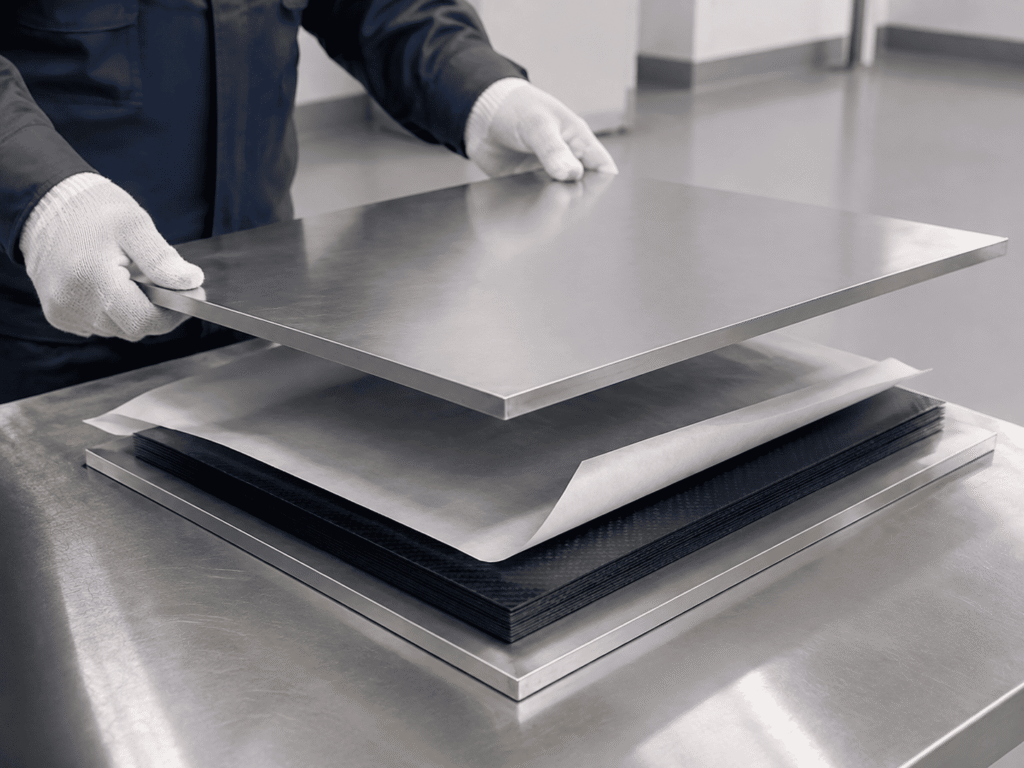

The prepreg layups are wrapped with release film or release paper and placed between tempered-glass or stainless-steel separator plates.
03

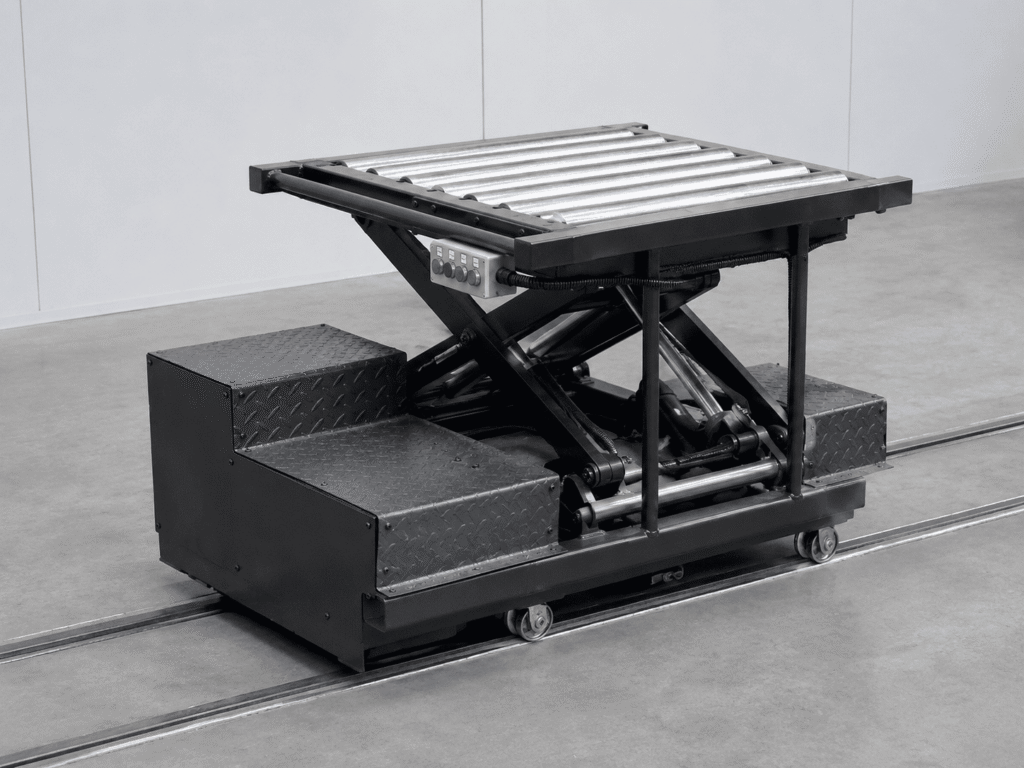

Loading onto the Lift Table
The prepared layups and separator plates are manually placed on the non-powered roller tabletop of the hydraulic lift table.
04
Layer Alignment and Feeding

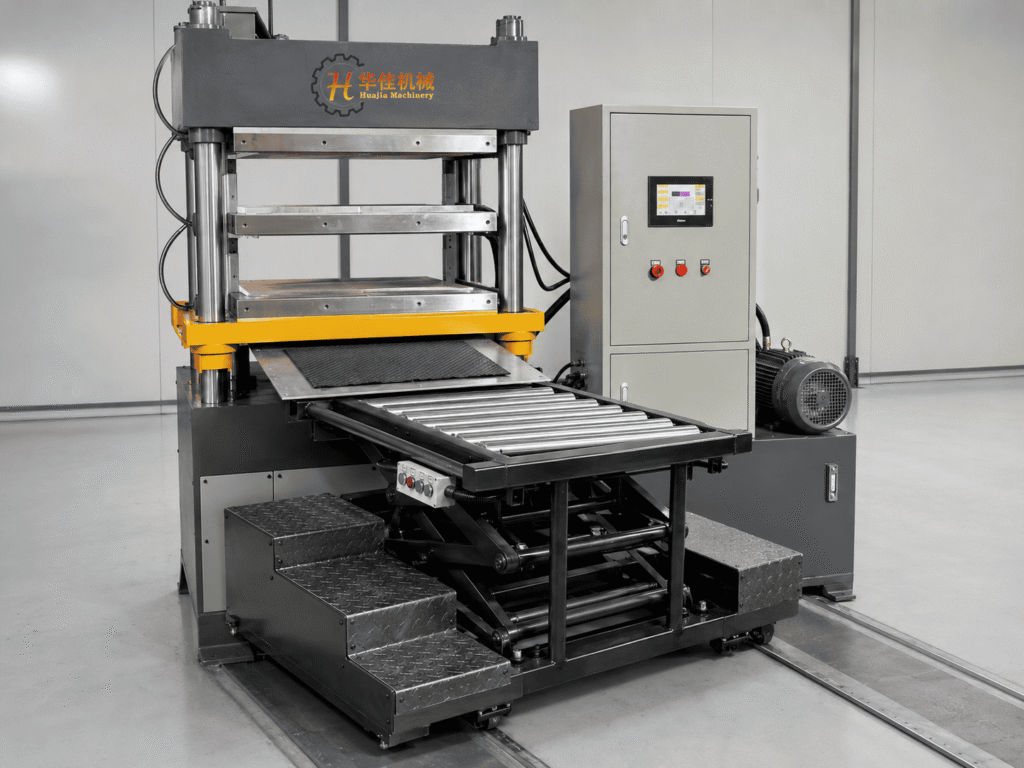

The lift table travels along the floor rails, adjusts to the required working-layer height, and aligns with the two-layer hot press. The material is then manually pushed into the press.
05

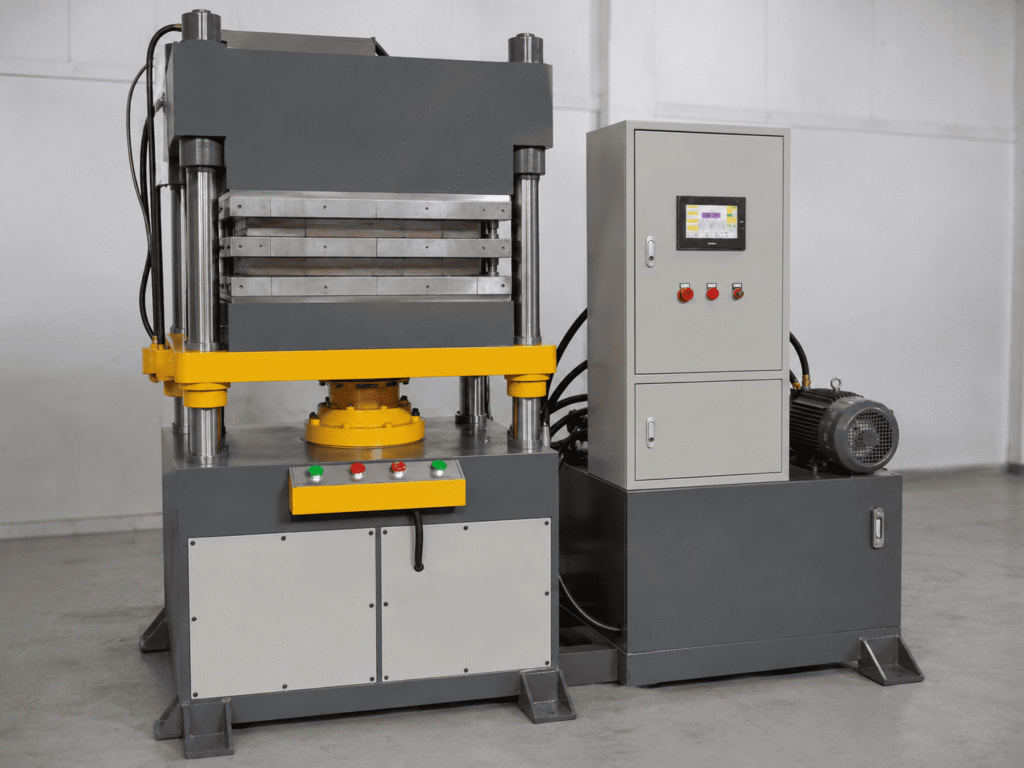

Hot Press Forming
The hot press applies the preset temperature, hydraulic pressure, and holding time to consolidate and cure the carbon fiber prepreg sheets.
06
Unloading, Cooling and Inspection

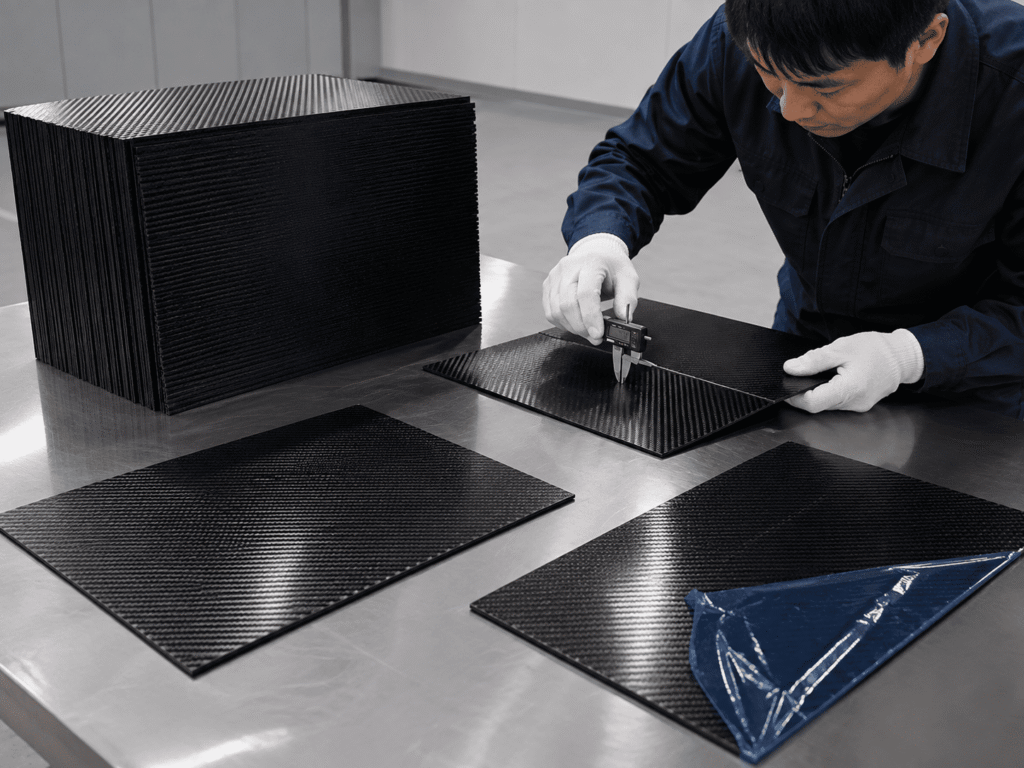

After forming, the sheets are removed using the lift table, cooled naturally, and inspected for dimensions, thickness, flatness, and surface quality.
Technical Data
Technical
Technical
Specifications
| Specification | Value |
|---|---|
| Production Line Type | Customized Carbon Fiber Sheet Forming Line |

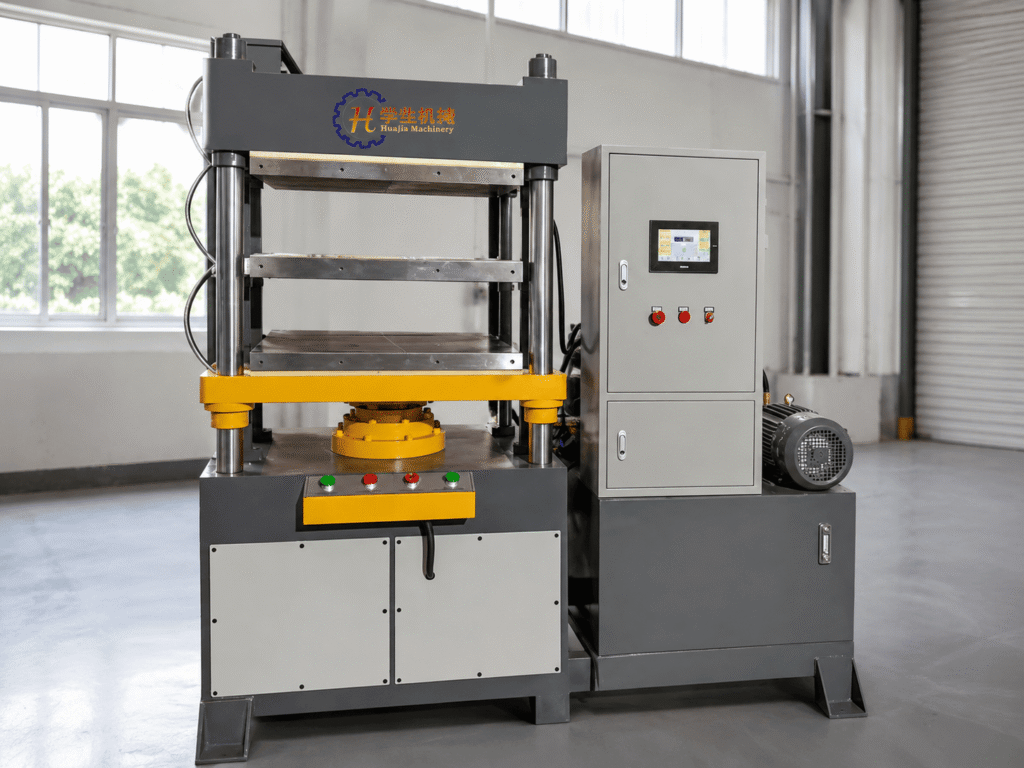

| Main Forming Equipment | Two-Layer Four-Column Hydraulic Hot Press |
| Working Layers | 2 Layers |
| Number of Heated Platens | 3 Heated Platens |
| Forming Material | Carbon Fiber Prepreg |
| Main Product | Flat Carbon Fiber Sheets |
| Material Handling Equipment | Hydraulic Roller Lift Table |
| Lift Table Rated Load | 3 Tons |
| Roller Table Size | 600 × 900 mm |
| Lift Table Height Range | 650–1750 mm |
| Lift Table Travel Method | Motor-Driven Rail Travel |
| Loading and Unloading | Manual Feeding on Non-Powered Rollers |
| Cooling Method | Natural Cooling |
| Forming Temperature | Adjustable According to Prepreg Process |
| Pressing Pressure | Customized According to Product Requirements |
| Holding Time | Set According to Product Requirements |
| Standard Power Supply | 380V / 50Hz / 3 Phase |
| Customized Voltage | Available According to Customer’s Country |
| Line Configuration | Customized According to Capacity and Workshop Layout |
All specifications can be customized based on your production requirements.
Use Cases
Application
Application
Scope
This production line is designed for manufacturing flat carbon fiber sheets from carbon fiber prepreg. It is suitable for producing sheets with different dimensions, thicknesses, layup structures, and surface requirements.
The finished carbon fiber sheets can be further processed into sports equipment components, automotive parts, electronic product components, industrial panels, drone parts, and other lightweight composite products.
Flexible Configuration
Customization
Customization
Options
Hot Press Configuration
Pressing force, heated platen dimensions, working layers, opening height, cylinder stroke, and maximum temperature can be configured according to the carbon fiber sheet specifications.
Lift Table Configuration
Roller table dimensions, rated load, lifting range, rail length, travel speed, and docking height can be customized according to the hot press and material size.
Production Capacity
The number of hot presses, lift tables, preparation stations, and cooling stations can be configured according to the required production capacity.
Process Parameters
Temperature, pressure, holding time, heating stages, and pressure stages can be configured according to the customer’s prepreg and forming process.
Control System
PLC touchscreen control, recipe storage, production counting, alarm records, manual/automatic modes, and multilingual interfaces are available.
Workshop Layout
Equipment position, rail direction, loading area, unloading area, cooling area, and inspection station can be designed according to the customer’s workshop.
Power Supply and Safety
Standard power supply is 380V / 50Hz / 3 Phase. Voltage, frequency, electrical components, safety light curtains, guards, and other safety devices can be customized for the destination country.
Common Questions
Frequently Asked
Frequently Asked
Questions
What products can this production line manufacture?
The production line is designed primarily for manufacturing flat carbon fiber sheets from prepreg. Sheet dimensions, thickness, layup structure, and surface requirements can be customized.
How does the two-layer hot press improve production efficiency?
The press provides two working layers, allowing two groups of carbon fiber prepreg sheets to be formed during one production cycle. Actual capacity depends on sheet size, layup quantity, and forming time.
How are materials loaded into the hot press?
The hydraulic roller lift table travels along floor rails and adjusts to the required working-layer height. The operator then manually pushes the separator plates and prepreg layups into the press over the non-powered rollers.
Can the forming temperature, pressure, and time be adjusted?
Yes. Temperature, hydraulic pressure, and holding time can be set according to the prepreg type, sheet thickness, layup structure, and curing process.
Does the production line include cooling equipment?
The standard process uses natural cooling after unloading. Dedicated cooling equipment or a cooling station can be configured if required by the customer’s process.
Can the lift table match both working layers?
Yes. The lifting height can be adjusted to align with both working positions of the two-layer hot press for loading and unloading.
Can the production line be customized for our workshop?
Yes. The press configuration, roller table size, lifting range, rail direction, loading area, cooling area, control system, and overall layout can be customized.
What information is required for a quotation?
Please provide the carbon fiber sheet dimensions, thickness, prepreg type, layup quantity, forming temperature, required pressure, holding time, production capacity, workshop layout, and local power supply.
Need a Custom Carbon Fiber Sheet Production Line?
Tell us your carbon fiber sheet dimensions, thickness, prepreg type, layup structure, forming temperature, pressure requirements, production capacity, workshop layout, and local power supply. Our engineering team will recommend a complete solution covering prepreg preparation, material handling, two-layer hot press forming, unloading, cooling, and inspection.
