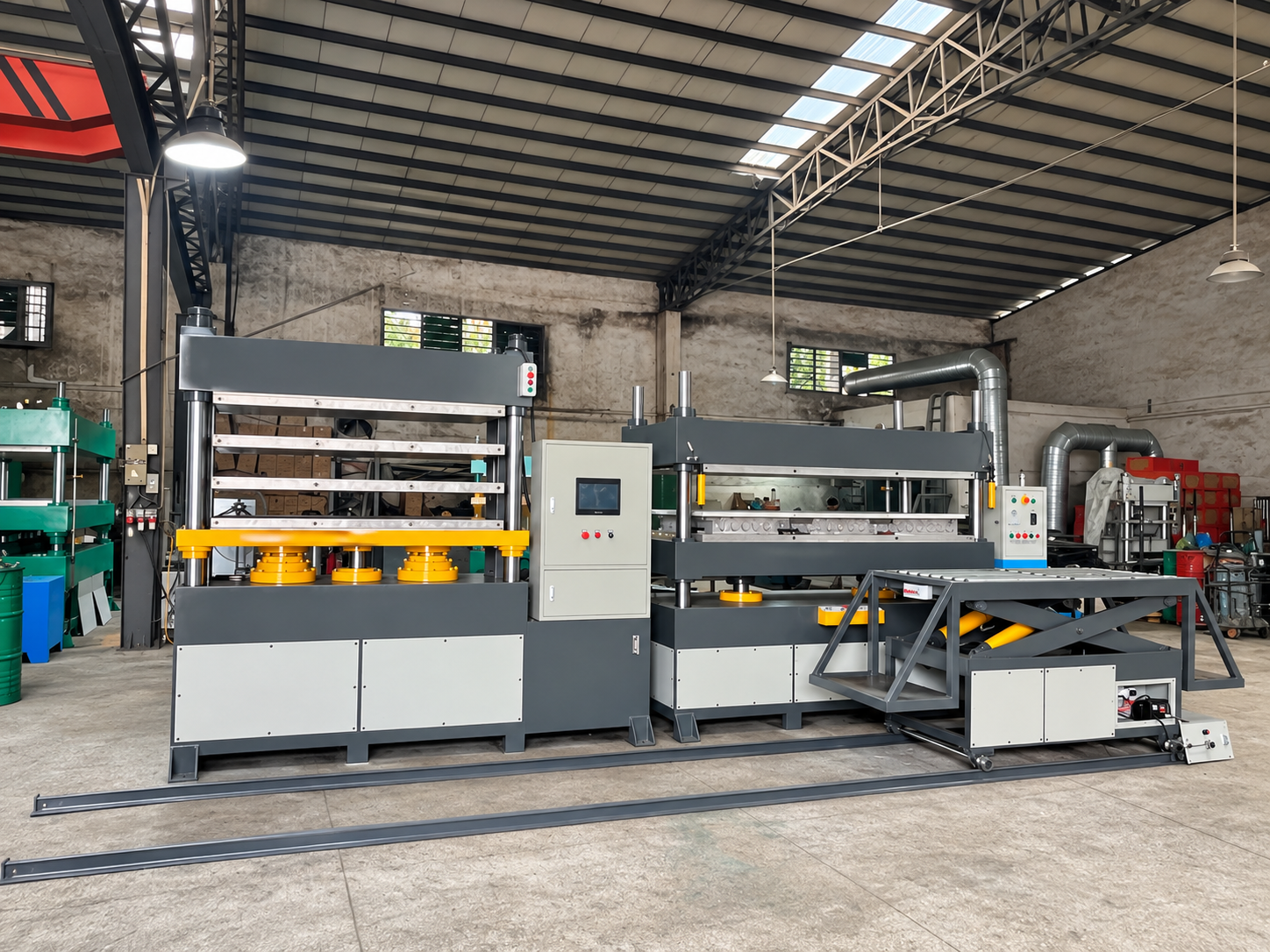

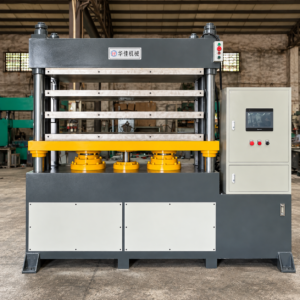

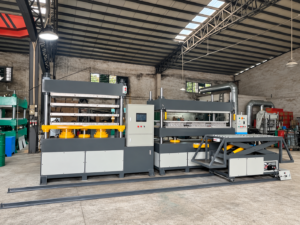

150T Three-Layer Four-Column Carbon Fiber Hot Press
150T
Three-Layer Four-Column Carbon Fiber Hot Press
A custom-built carbon fiber hot press with three working layers and 1500 × 650 mm heated platens. Huajia configures the press around your part dimensions, mold, material and production requirements.

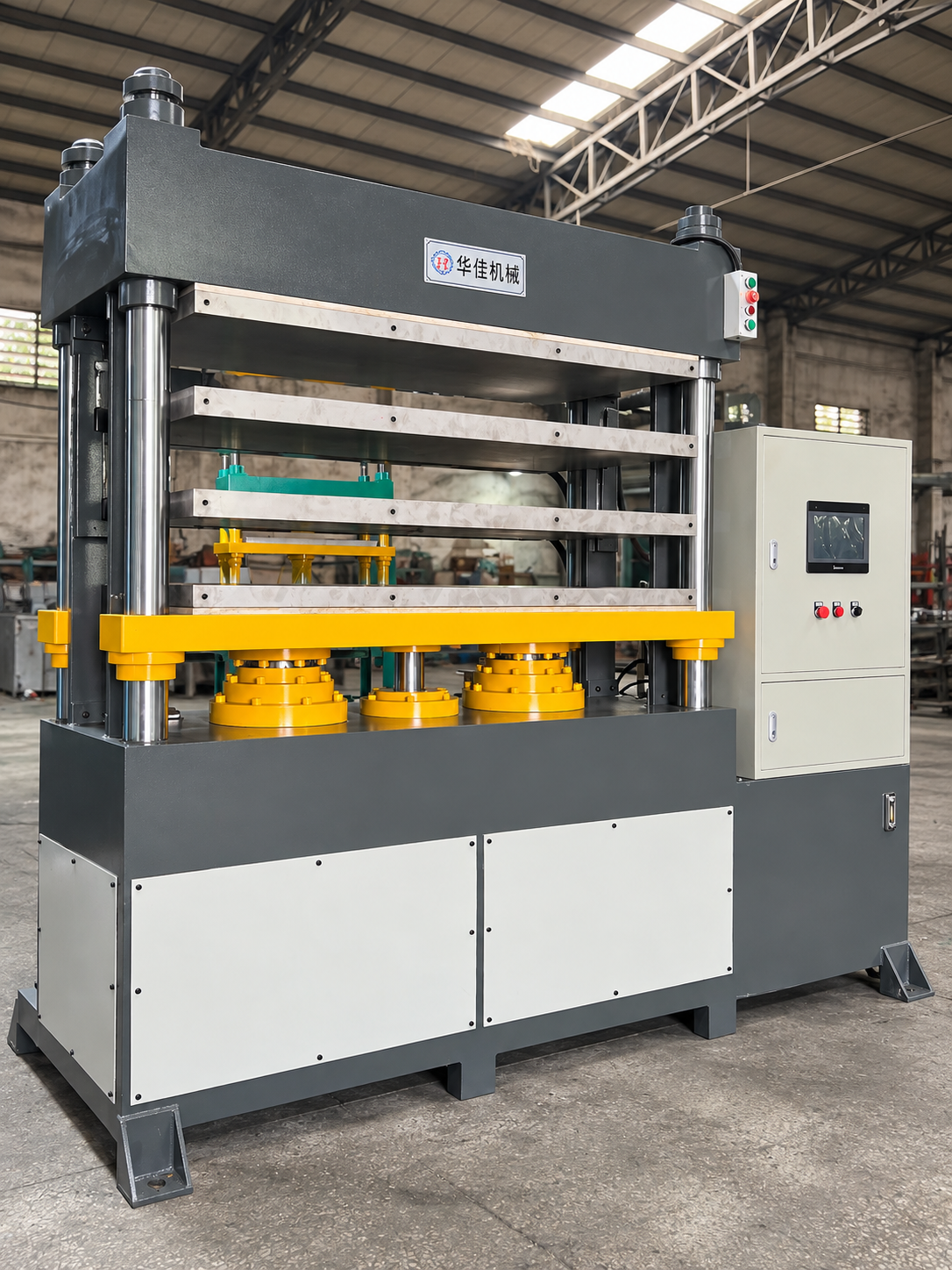

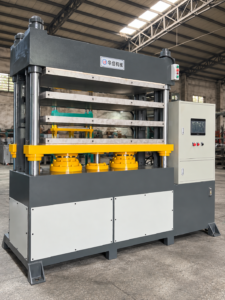

Product Introduction
This 150-ton four-column hot press is built for carbon fiber composite forming. Its three working layers allow multiple molds or workpieces to be processed in one pressing cycle.
The machine has 1500 × 650 mm heated platens, a 150 mm opening per layer and a 450 mm hydraulic cylinder stroke. Electric heating tubes provide temperatures up to 300°C, while a PLC touchscreen lets operators set and monitor the pressing process.
Carbon fiber products differ in size, layup, mold design and forming cycle. We review these requirements with the customer before finalizing the platen layout, heating arrangement and control configuration.
Key Advantages
Why Choose This Equipment
A Practical Three-Layer Setup
We plan the working layers around your loading method and production target so the configuration fits your actual workflow.
Process Requirements Considered Early
Material, forming temperature, pressing sequence and cycle requirements are reviewed when specifying the heating, hydraulic and control systems.
Custom Equipment from One Manufacturer
Huajia designs and manufactures the press, allowing the mechanical, heating and control configurations to be coordinated within one project.
Support for Overseas Projects
We can provide installation guidance, operator training and after-sales technical support after delivery.

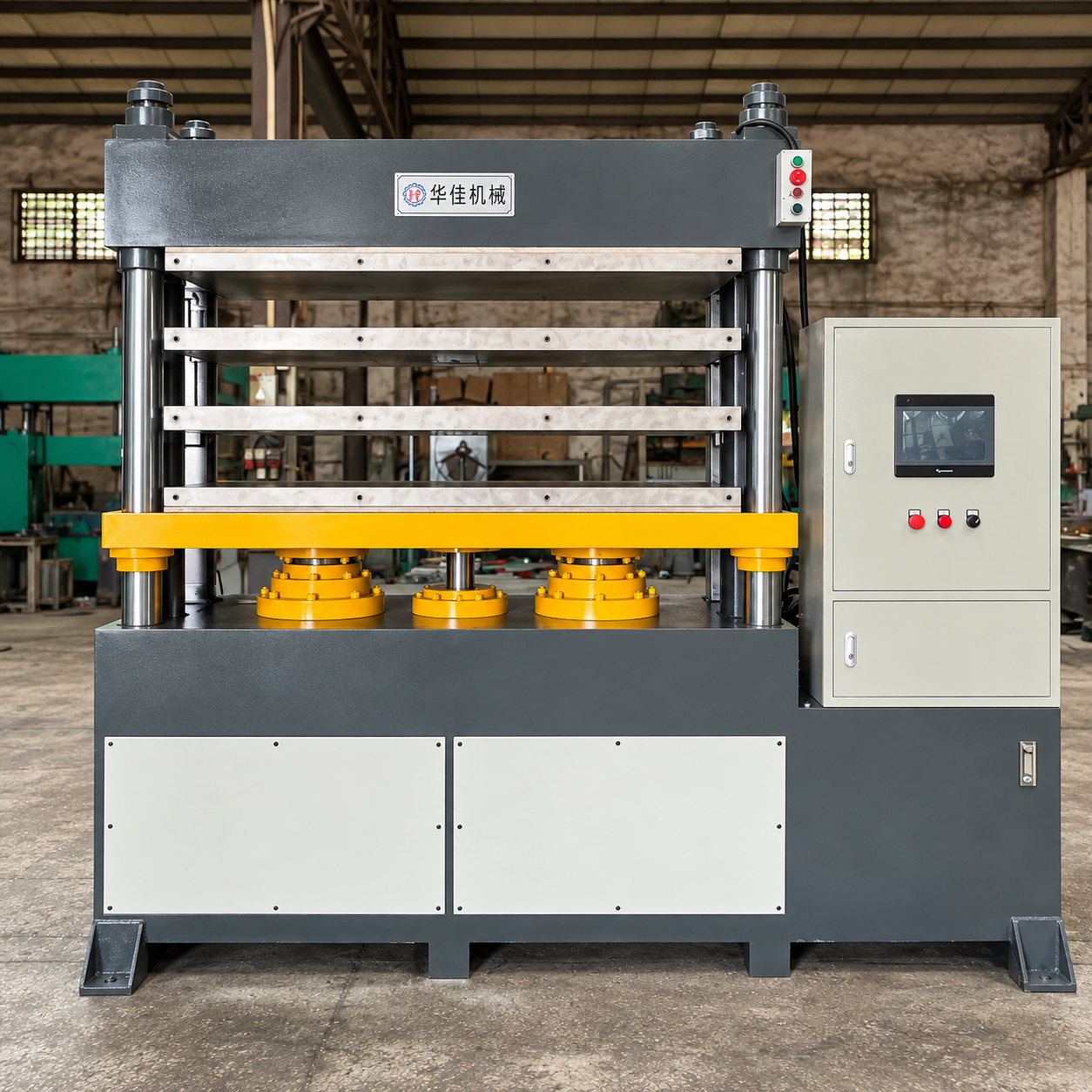

Equipment Components
Main System Structure
Component 01

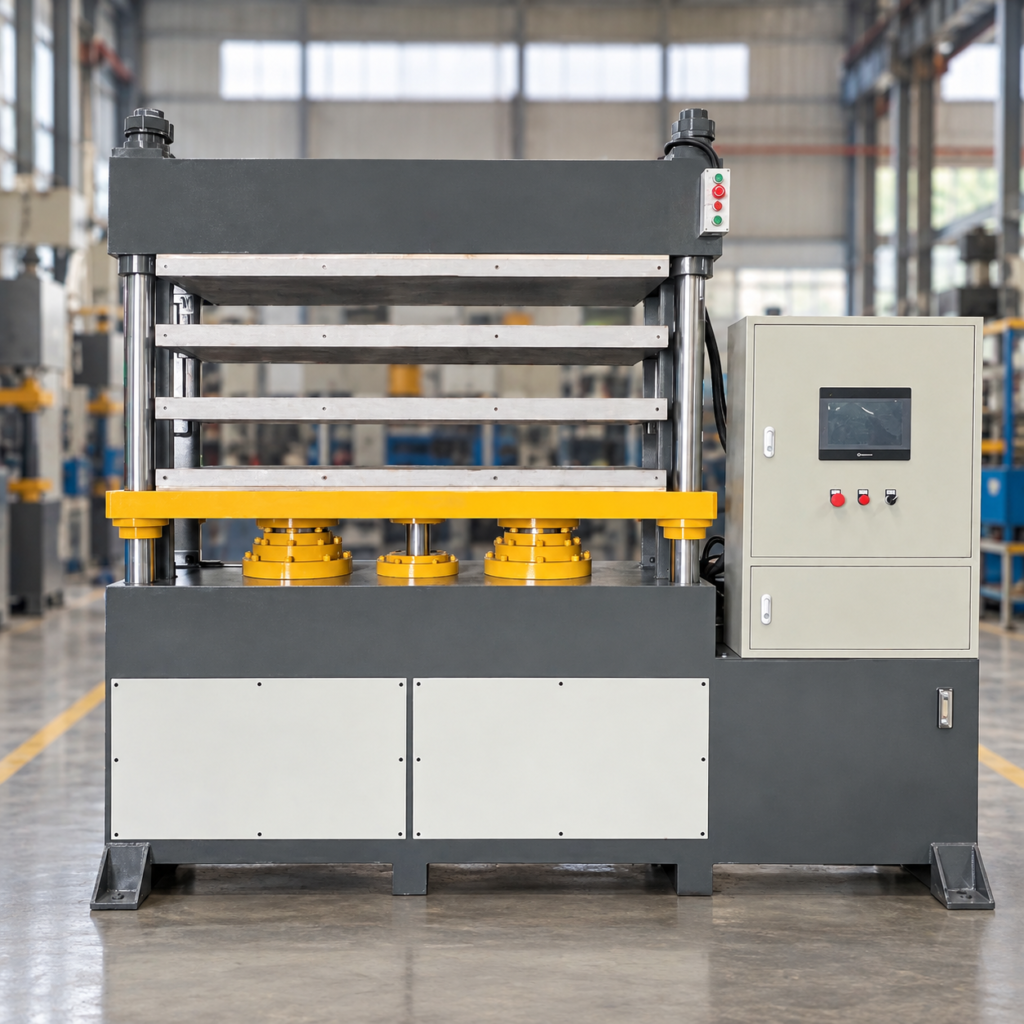

Four-Column Structure
The four-column structure guides the moving platen during pressing and provides access to the three working layers for mold loading and unloading.
Component 02

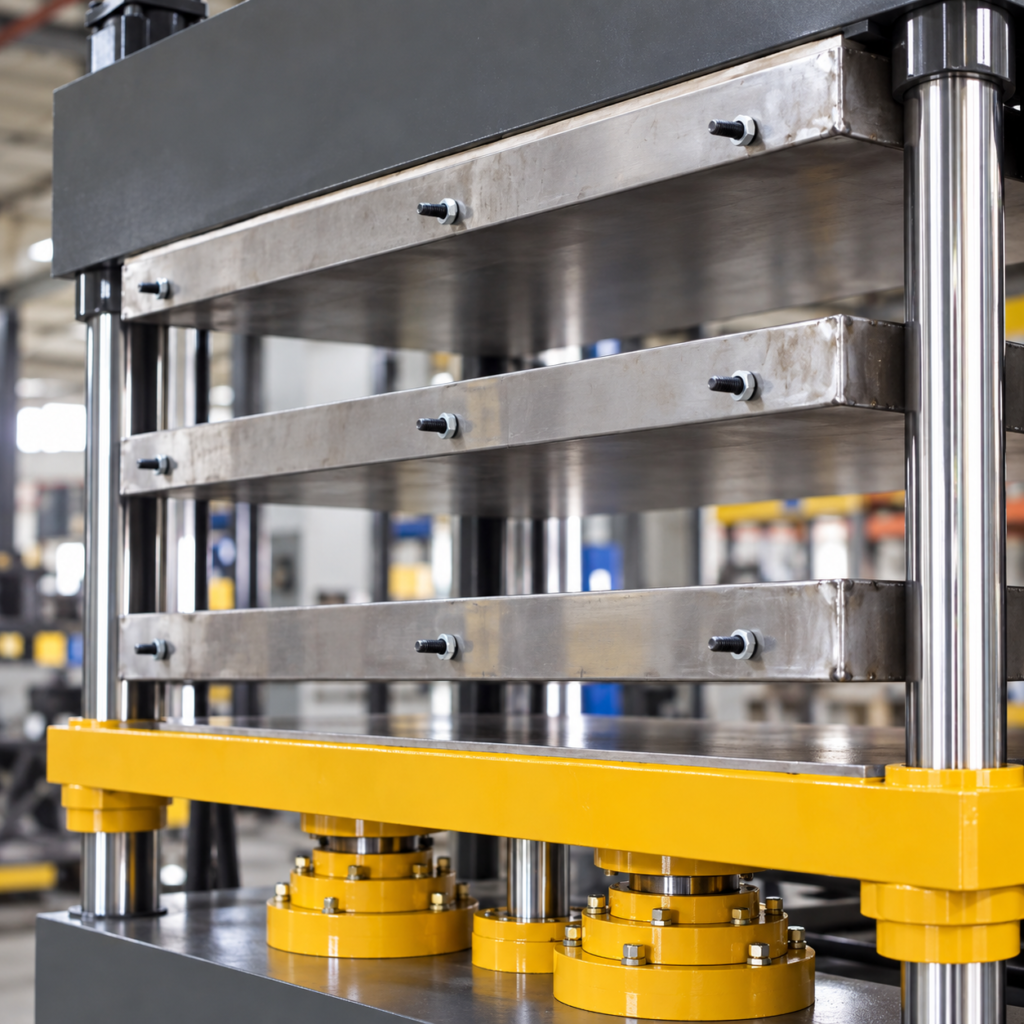

Three-Layer Heated Platen System
Four electrically heated platens form three working layers. Each layer has a 150 mm maximum opening height, allowing suitable molds or workpieces to be loaded across three layers in one pressing cycle.
Component 03

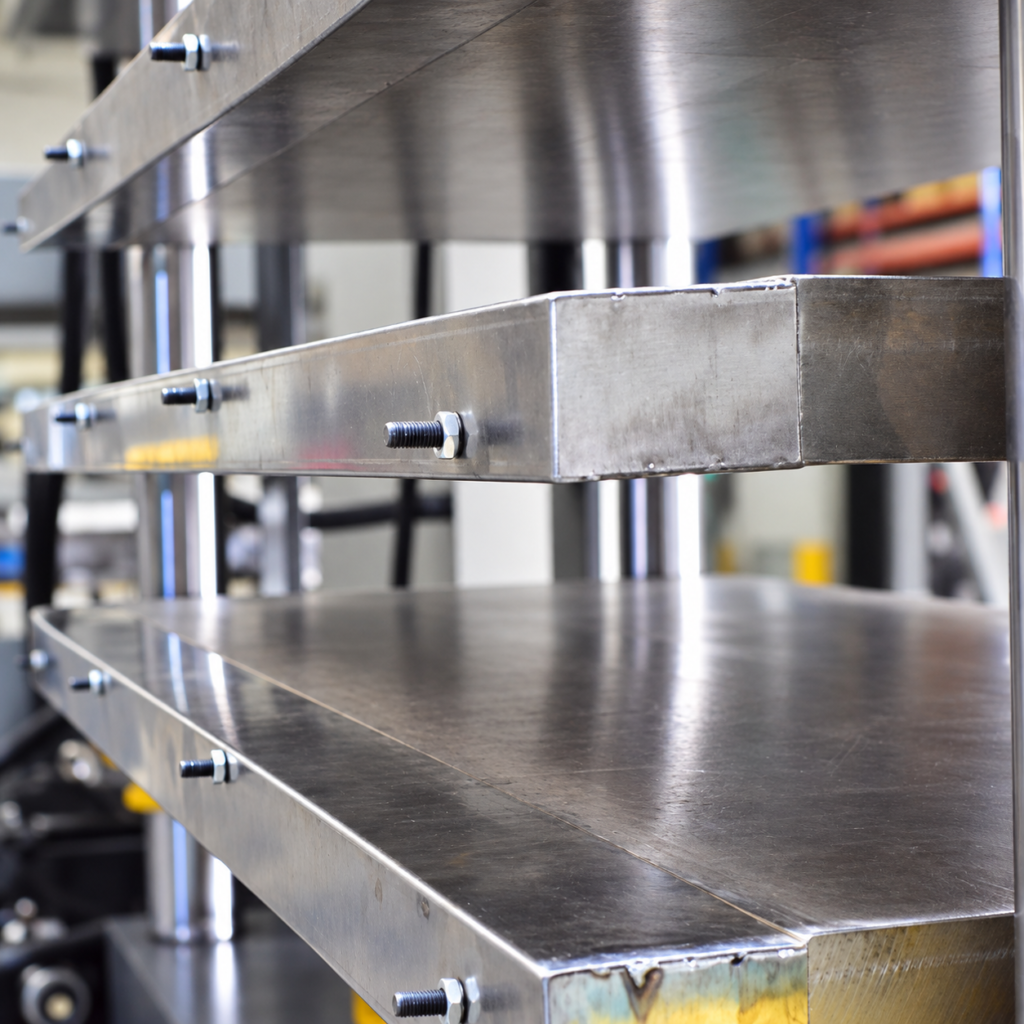

Electric Heating System
Heating tubes are installed in the platen system, with a maximum heating temperature of 300°C. The forming temperature can be set according to the carbon fiber prepreg and mold requirements.
Component 04

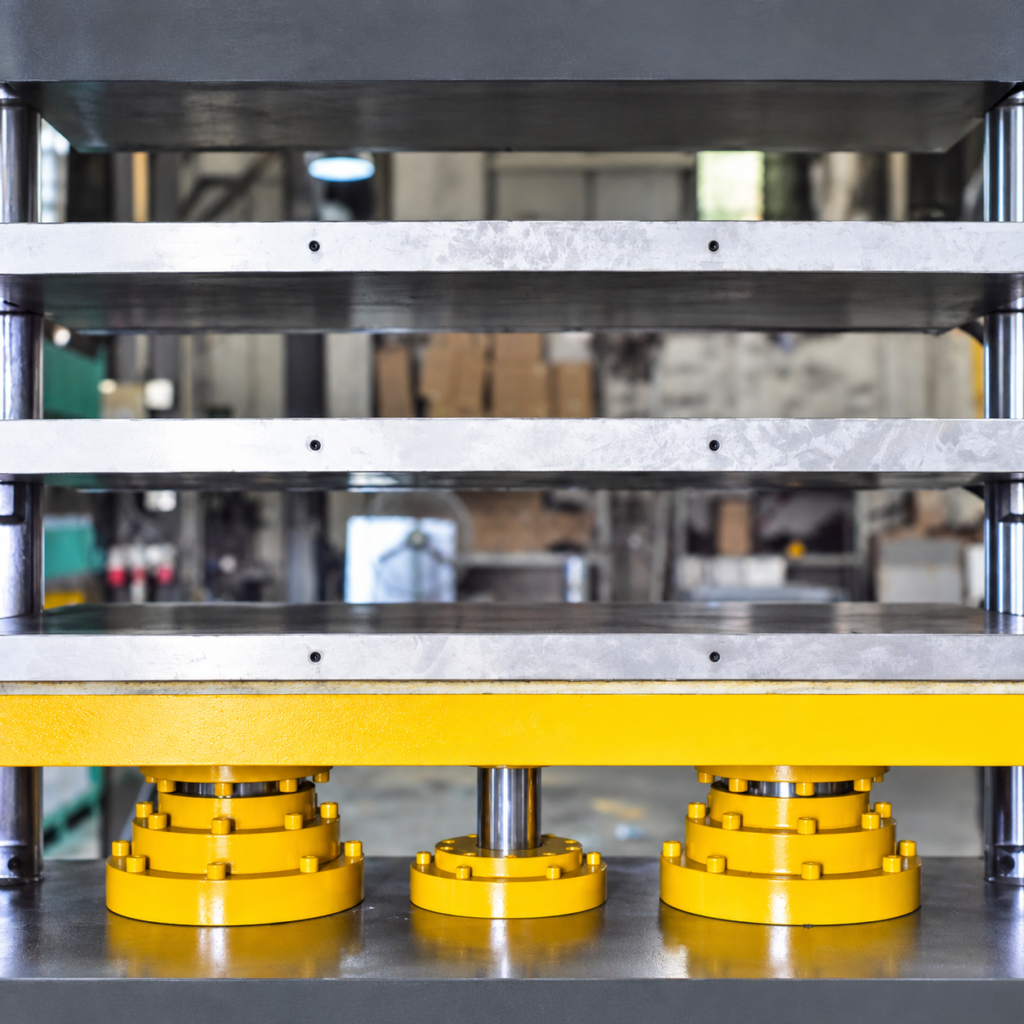

Hydraulic Pressing System
The hydraulic system delivers a rated pressing force of 150 tons. The hydraulic cylinder has a 450 mm stroke to drive the pressing movement.
Component 05

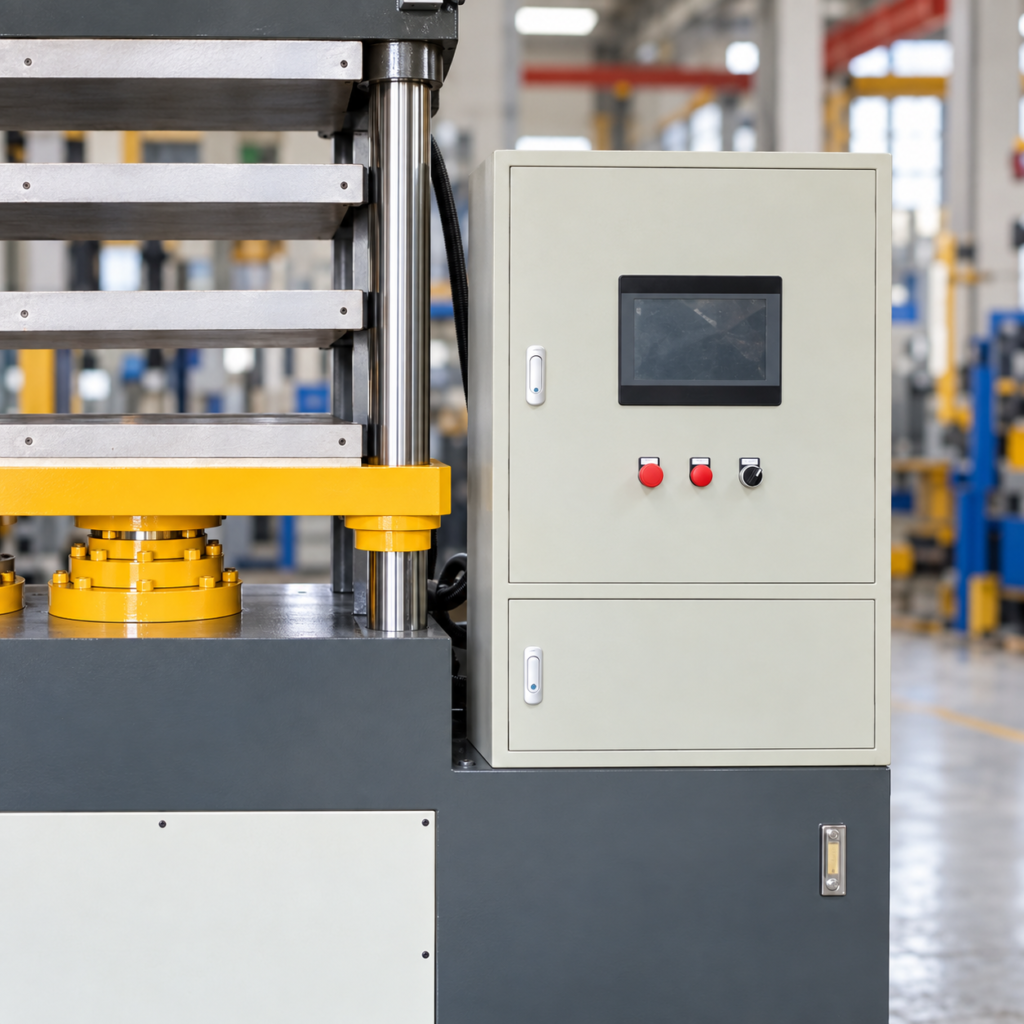

PLC Touchscreen Control
The touchscreen provides an interface for setting and monitoring machine operation. The press supports manual and semi-automatic operating modes.
Component 06

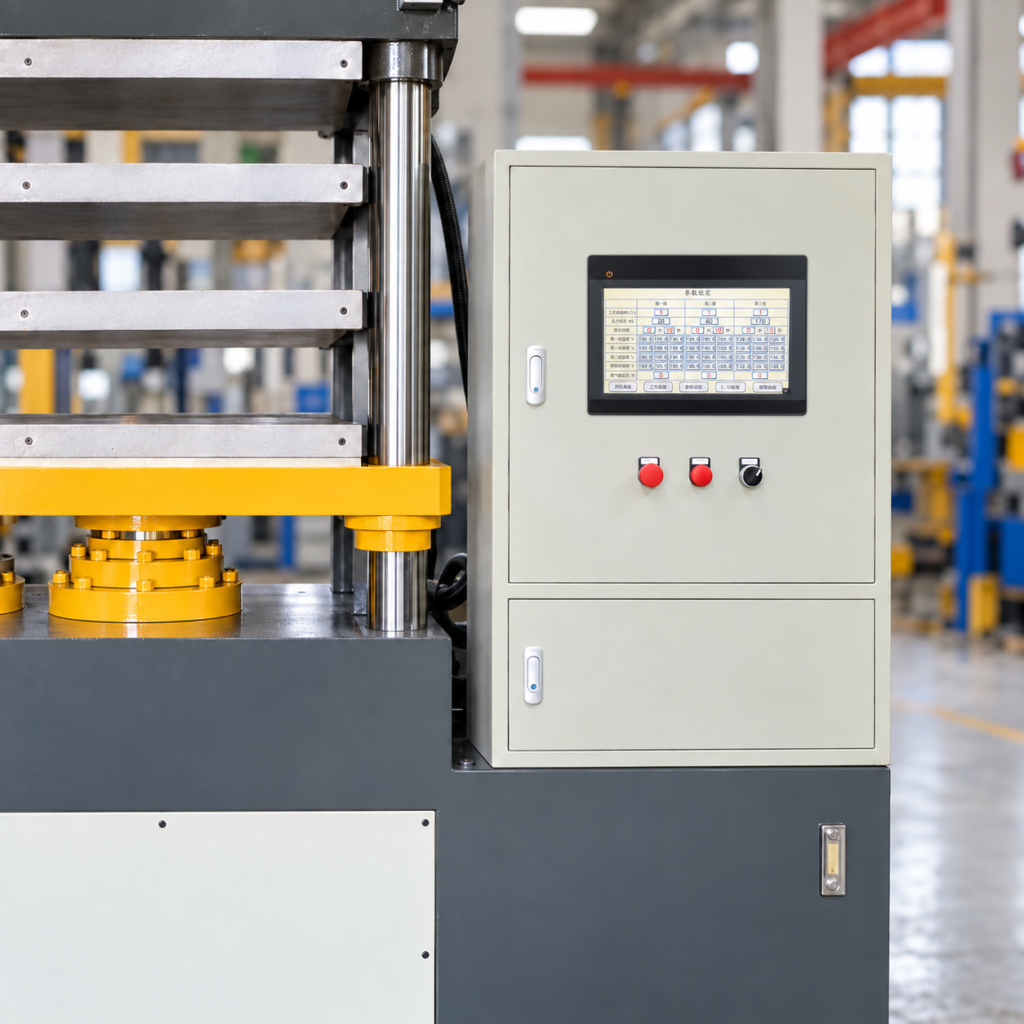

Power and Electrical System
The machine uses a 7.5 kW hydraulic motor and has a total heating power of 61.2 kW. Standard power supply is three-phase 380 V, 50 Hz; voltage can be configured for different countries.
Technical Specifications
Equipment Parameters
| Machine Structure | Four-Column Hydraulic Press |
| Working Layers | 3 Layers |
| Number of Heated Platens | 4 Heated Platens |
| Forming Material | Carbon Fiber Prepreg |
| Main Application | Carbon Fiber Sheet and Composite Part Forming |
| Heating Method | Electric Heating Tubes |
| Machine Configuration | Single Machine |
| Rated Pressing Force | 150 Tons |
| Heated Platen Size | 1500 × 650 mm |
| Hydraulic Cylinder Stroke | 450 mm |
| Maximum Opening Height per Layer | 150 mm |
| Maximum Temperature | 300°C |
| Temperature Accuracy | ±3°C |
| Pressing Time | Adjustable According to Material and Product Requirements |
| Control System | PLC Touchscreen Control |
| Hydraulic Motor Power | 7.5 kW |
| Total Heating Power | 61.2 kW |
| Operating Mode | Manual / Semi-Automatic |
| Power Supply | 380 V / 50 Hz / 3-Phase (Customizable for Different Countries) |
Customization Capabilities
Built Around Your Requirements
From machine dimensions and configuration to control systems and automation, we tailor your equipment to your production requirements. Explore the customization options available for this equipment below.
Pressing Force
Working Table Size
Stroke
Opening Height
Machine Color
Number of Layers
Machine Configuration
Servo System
PLC & Touchscreen Control
Automation
FAQ
Frequently Asked Questions
Can this press be configured for our carbon fiber product?
<p>Yes. Please provide the part dimensions, mold dimensions, material, required temperature and production target so we can assess the platen size, layer opening and process settings.</p>
Can this press be configured for our carbon fiber part?
<p>Yes. Send us your part drawing, mold dimensions, material information and production requirements. We will review the press configuration against your application.</p>
How much space is available in each working layer?
<p>The opening height is 150 mm per layer. Please provide the complete mold thickness and the clearance needed for loading so we can check suitability.</p>
What is the maximum heating temperature?
<p>The platens can reach up to 300°C using electric heating tubes. The actual forming temperature should follow the material supplier’s process requirements.</p>
Can different products use different process settings?
<p>The PLC touchscreen is used to set and monitor the pressing process. Please tell us which parameters and operating sequences your products require so we can confirm the appropriate control configuration.</p>
