Two-Layer Forming Structure
The machine features two working layers, allowing two groups of carbon fiber prepreg sheets to be hot-pressed during one production cycle and improving production efficiency.
Custom Two-Layer Hydraulic Hot Press for Carbon Fiber Sheet Forming
Two-Layer

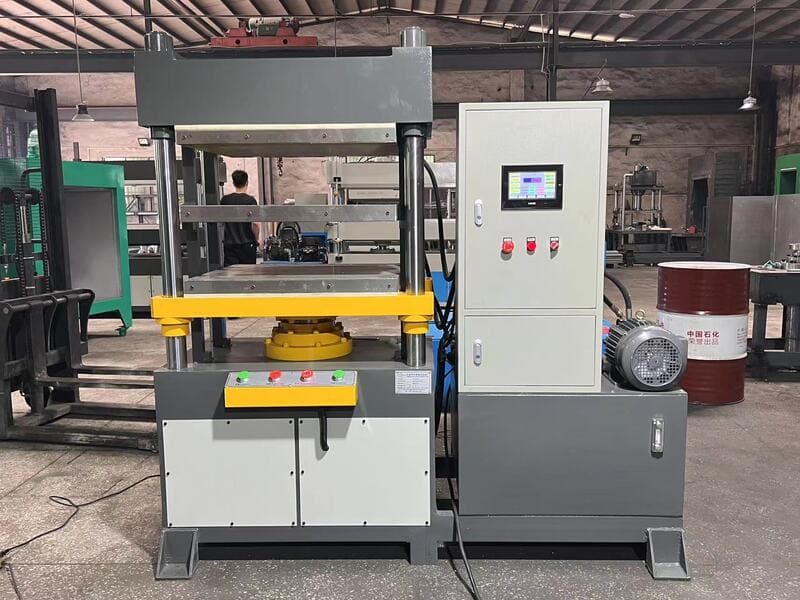

Carbon Fiber Prepreg Sheet Hot Press Machine
This two-layer hydraulic hot press is designed for manufacturing carbon fiber sheets from prepreg materials. Its two working layers support simultaneous sheet forming, while controlled heating, stable hydraulic pressure, and adjustable holding time help improve sheet flatness, thickness consistency, and production efficiency.
Product Introduction
The Two-Layer Carbon Fiber Prepreg Sheet Hot Press Machine is designed for manufacturers that need to improve output while maintaining consistent sheet quality. Its two independent working layers allow multiple carbon fiber prepreg layups to be formed during the same production cycle, helping increase production efficiency without requiring two separate presses.
The four-column structure provides stable guidance and even pressure distribution during closing, heating, pressing, and holding. Three heated platens create two forming spaces, while adjustable temperature, pressure, and holding time allow the machine to accommodate different prepreg systems, sheet thicknesses, layup structures, and production requirements.

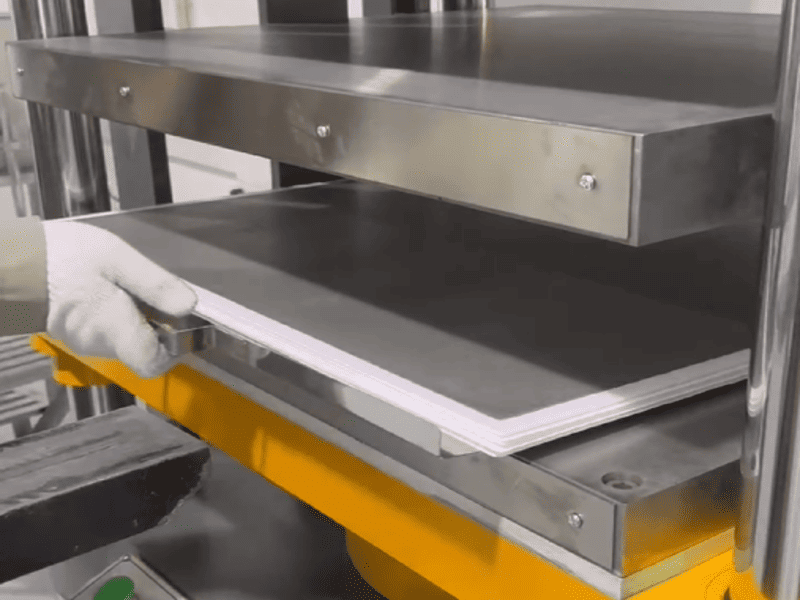

Carbon fiber prepreg layers are stacked between separate stainless-steel plates before being loaded into the press. The machine can be customized according to the required pressing force, platen dimensions, opening height, cylinder stroke, heating temperature, control system, voltage, and workshop layout. It can also be paired with a hydraulic roller lift table to simplify loading and unloading at both working levels.
Key Advantages
Why Choose This Equipment
Uniform Platen Heating
The heated platens provide controlled heat for carbon fiber prepreg curing, helping improve temperature uniformity, resin flow, and bonding between prepreg layers.
Stable Hydraulic Pressure
The hydraulic system provides stable pressing force during the forming and holding stages, supporting consistent compaction and reliable carbon fiber sheet quality.
Adjustable Process Parameters
Temperature, pressure, and holding time can be adjusted according to the prepreg system, sheet thickness, layup structure, and production requirements.
Consistent Sheet Forming
Controlled heating and pressure help improve sheet flatness, thickness consistency, surface quality, and repeatability between production batches.
Custom Machine Configuration
Pressing force, platen dimensions, opening height, stroke, heating temperature, voltage, and control system can be customized according to the customer’s carbon fiber sheet specifications
Equipment Components
Main System Structure
Component 01
Four-Column Structure
The machine adopts a four-column structure that guides the moving platen during pressing. This design provides stable vertical movement, convenient access to the working area, and reliable support for two-layer carbon fiber prepreg sheet forming.
Component 02

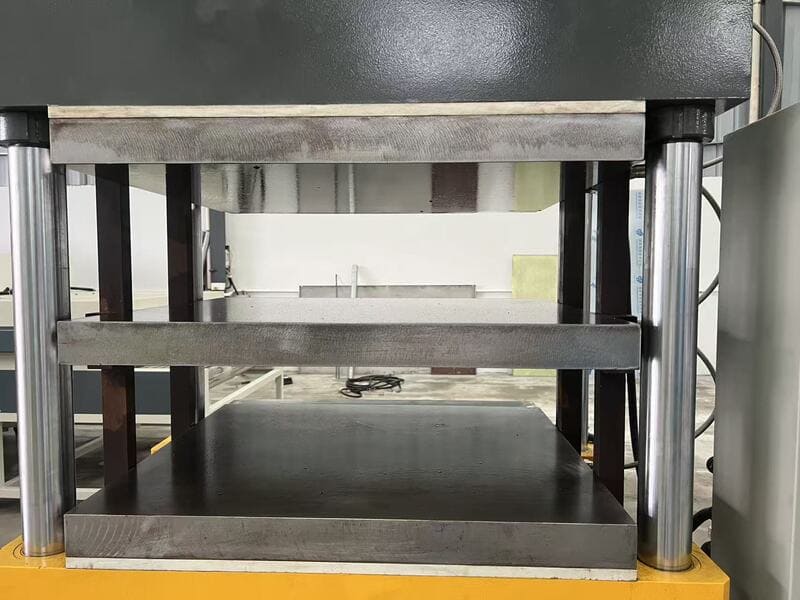

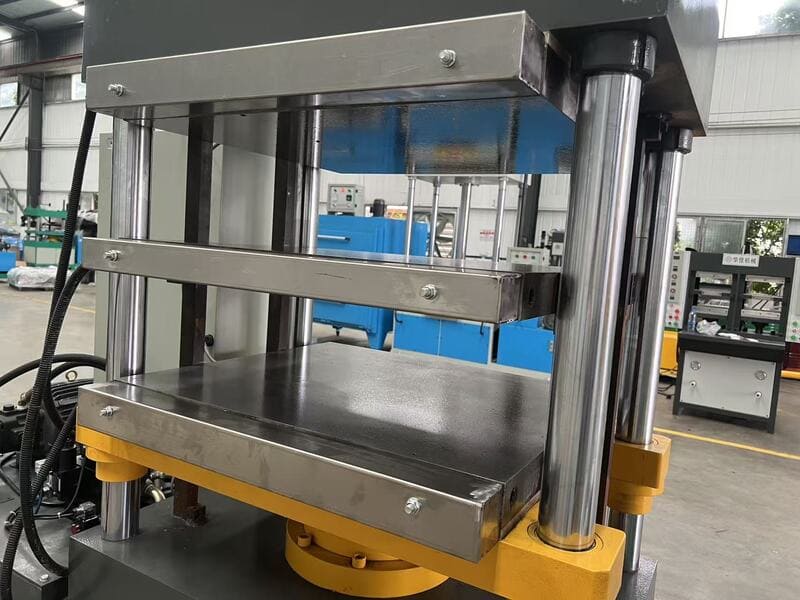

Two-Layer Heated Platen System
Three heated platens create two working layers, allowing two groups of carbon fiber prepreg sheets to be formed during one production cycle.
Component 03
Hydraulic Pressing System
The hydraulic cylinder drives the moving platen and provides controlled pressing force during closing, forming, pressure holding, and return.
Component 04

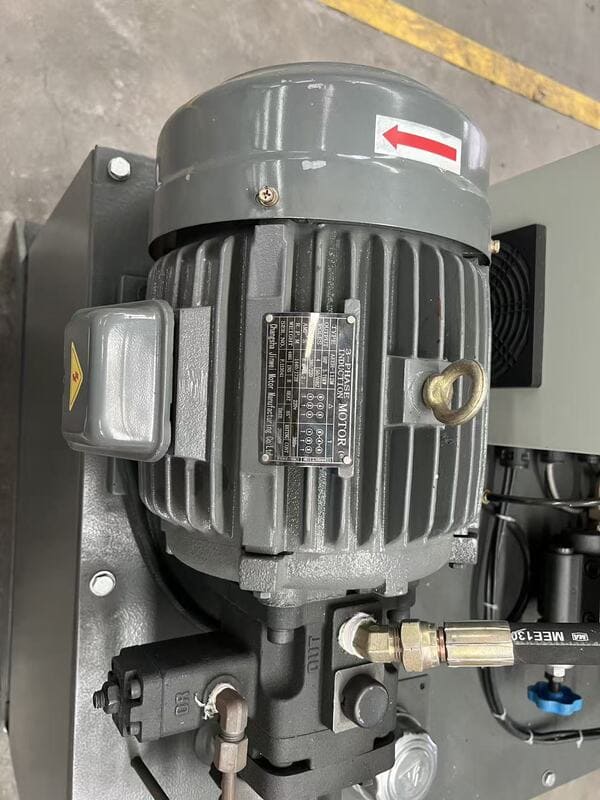

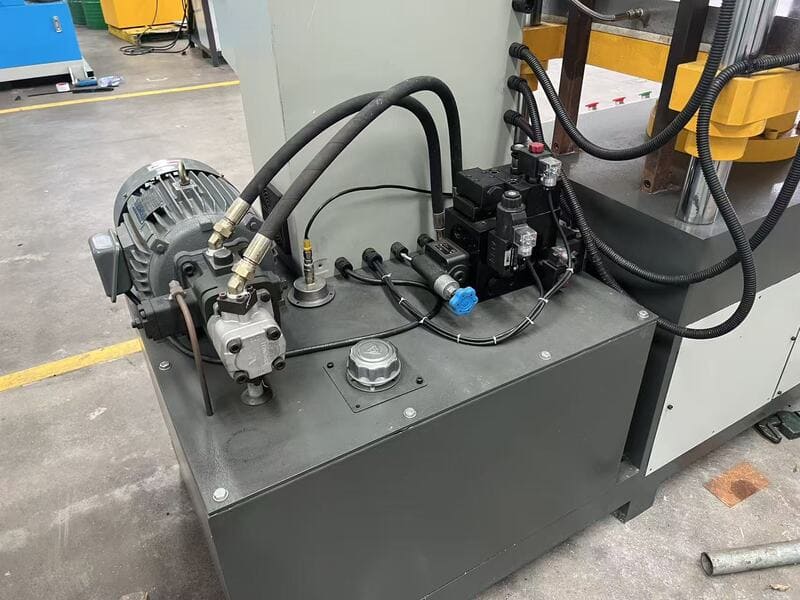

Hydraulic Power Unit
The hydraulic power unit includes the motor, pump, oil tank, valves, and connecting pipelines required to provide power and control the machine’s pressing movement.
Component 05

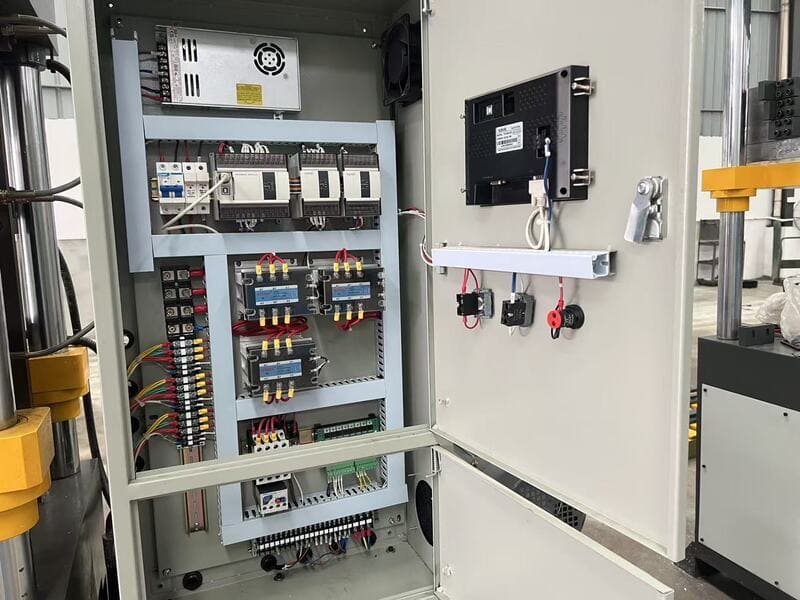

Electrical Control Cabinet

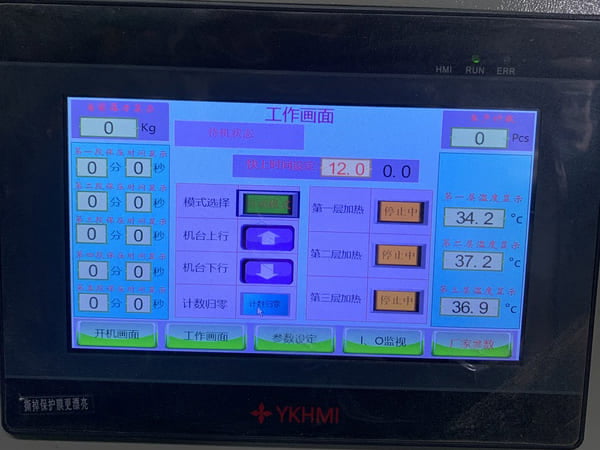

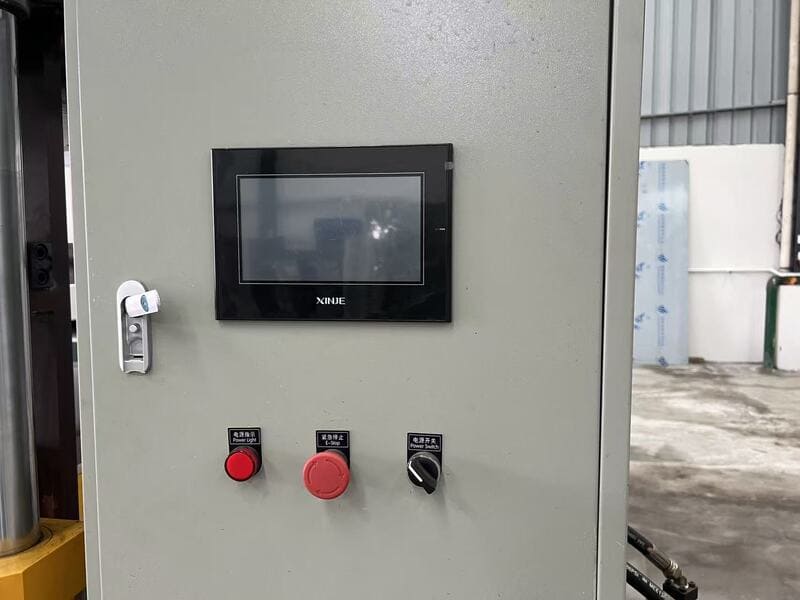

The electrical control cabinet integrates the touchscreen, control components, operating buttons, and electrical system for setting and monitoring the machine’s operating parameters.
Component 06
Temperature Control System
The temperature control system regulates the heated platens according to the carbon fiber prepreg forming requirements, helping maintain stable heating conditions during the production cycle.
Technical Specifications
Equipment Parameters
| Machine Structure | Four-Column Hydraulic Press |
| Working Layers | 2 Layers |
| Number of Heated Platens | 3 Heated Platens |
| Forming Material | Carbon Fiber Prepreg |
| Main Application | Carbon Fiber Sheet Forming |
| Heating Method | Electric Heating |
| Machine Configuration | Single Machine |
| Rated Pressing Force | 60Tons |
| Heated Platen Size | 650*750mm |
| Hydraulic Cylinder Stroke | 400mm |
| Maximum Opening Height per Layer | 200mm |
| Maximum Temperature | 300°C |
| Temperature Accuracy | ±3°C |
| Pressing Time | Adjustable According to the Prepreg Material and Product Requirements |
| Hydraulic Motor Power | 5.5KW |
| Total Heating Power | 23KW |
| Control System | PLC Touchscreen Control |
| Operating Mode | Manual / Automatic |
| Power Supply | 380V / 50Hz / 3 Phase (Customizable for Different Countries) |
| Machine Weight | 3000KG |
Customization Capabilities
Built Around Your Requirements
From machine dimensions and configuration to control systems and automation, we tailor your equipment to your production requirements. Explore the customization options available for this equipment below.
Pressing Force
Working Table Size
Opening Height
Stroke
working_layers
temperature
control_system
power_supply
safety
feeding_system
cooling_system
machine_dimensions
FAQ
Frequently Asked Questions
What is this two-layer carbon fiber hot press used for?
<p>This machine is designed for hot press forming and curing carbon fiber prepreg sheets. It can also be configured for other composite materials according to the customer’s forming process.</p>
How does the two-layer structure work?
<p>Three heated platens create two independent working spaces. Carbon fiber prepreg layups can be placed in both layers and pressed during the same production cycle to improve production efficiency.</p>
Can the pressure and temperature be adjusted?
<p>Yes. The forming pressure, heating temperature, and pressure holding time can be set according to the prepreg resin system, sheet thickness, layup structure, and product requirements.</p>
How long does one pressing cycle take?
<p>The pressing time depends on the prepreg material, sheet thickness, curing temperature, and product requirements. The holding time can be set according to the customer’s production process.</p>
Can the machine specifications be customized?
<p>Yes. Pressing force, heated platen size, hydraulic cylinder stroke, opening height per layer, heating temperature, control system, and safety configuration can be customized.</p>
Can the voltage be customized for our country?
<p>Yes. The standard power supply is 380V / 50Hz / 3 Phase. The voltage and frequency can be customized according to the customer’s local industrial power supply.</p>
Does the machine include a cooling system?
<p>The cooling method depends on the customer’s carbon fiber sheet production process. Natural cooling, separate cooling equipment, or a customized cooling solution can be discussed according to the project requirements.</p>
What information is required for a quotation?
<p>Please provide the carbon fiber sheet dimensions, thickness, prepreg type, required production capacity, forming temperature, pressure requirements, opening height, and local power supply. Our engineers will recommend a suitable machine configuration.</p>
